ZW32-12 Recloser Outdoor Vacuum Circuit Breaker

Zw32-12 Recloser Outdoor Vacuum Circuit Breaker – Intelligent Protection for Overhead Distribution Networks

Designed for rugged outdoor environments, the ZW32-12 recloser Outdoor Vacuum circuit Breaker is a smart, self-contained switching solution engineered to enhance reliability in 12kV overhead power distribution systems. Ideal for rural grids, renewable interconnections, and remote infrastructure, this pole-mounted breaker integrates auto-reclosing logic, vacuum interruption technology, and weather-resistant construction into a single compact unit.


Unlike conventional indoor breakers, the ZW32-12 outdoor vacuum circuit breaker operates independently of control cabinets—featuring an integrated spring-operated mechanism, built-in current and voltage sensors, and a programmable electronic controller that supports up to four-shot auto-reclosing sequences. This enables rapid restoration after transient faults (e.g., lightning or tree contact), significantly improving service continuity without manual intervention.


Key features include:

Rated voltage: 12kV; breaking capacity up to 20kA

Fully sealed outdoor vacuum interrupter with IP67 protection against dust, moisture, and UV exposure

Stainless steel enclosure and composite insulators for long-term corrosion resistance

Supports remote monitoring via optional GPRS, RF, or fiber communication modules

Complies with IEC 62271-100 and IEEE C37.60 standards for reclosers

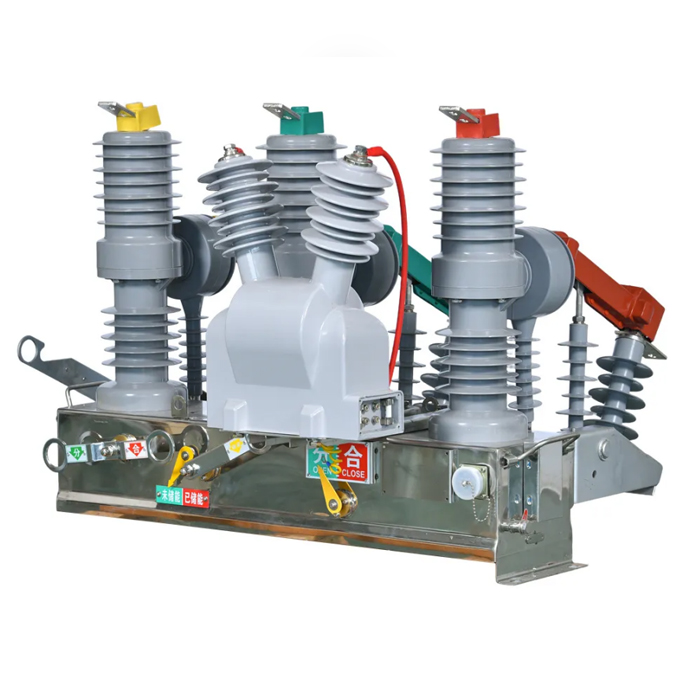

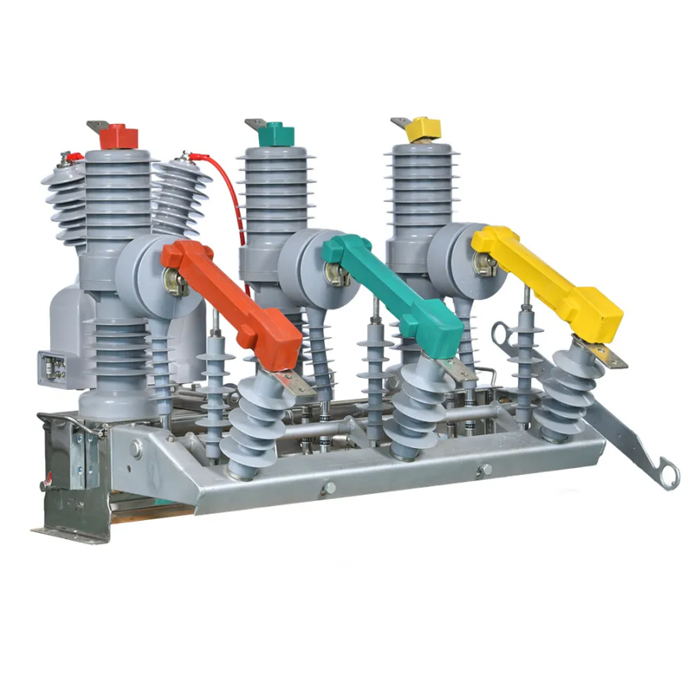

The sleek, aerodynamic design shown in the image above ensures stable performance in extreme temperatures, high humidity, and polluted atmospheres—making it a dependable choice for utilities aiming to modernize aging distribution networks.

As a versatile and autonomous device, the ZW32-12 recloser reduces outage durations, lowers operational costs, and lays the foundation for smarter, more resilient grid management in decentralized Power Systems.
